High quality 1.575ghz GPS active external antenna GNSS module RF antenna 3dBi SMA male magnetic

RCD-AT0800062
High quality 1.575ghz GPS active external antenna GNSS module RF antenna 3dBi SMA male magnetic

MOQ:Depending on  material and product complexity, usually 100PCS

SAMPLE:Available

OEM:We support OEM/ODM

Inquiry


Product name

High quality 1.575ghz GPS active external antenna GNSS module RF antenna 3dBi SMA male magnetic

Frequency

1575.42Mhz

Peak Gain

>3dBic Based on 7×7cm ground plane

V.S.W.R

1.5:1

Storage Temperature

-30 to +75 ℃ ℃

Weatherproof

100%Waterproof

Antenna Mounting

Magnetic

Filter Out Band Attenuation

(f0=1575.42 MHZ)

7dB Min f0+/-20MHz


20dB Min f0+/-50MHz


30dB Min f0+/-100MHz

Capacity

20000 pieces per day

Noise Figure

1.5DB

Input Impendence

50 Ω

Payment

TT/Western union/Paypal/Escrow

Service

OEM&ODM

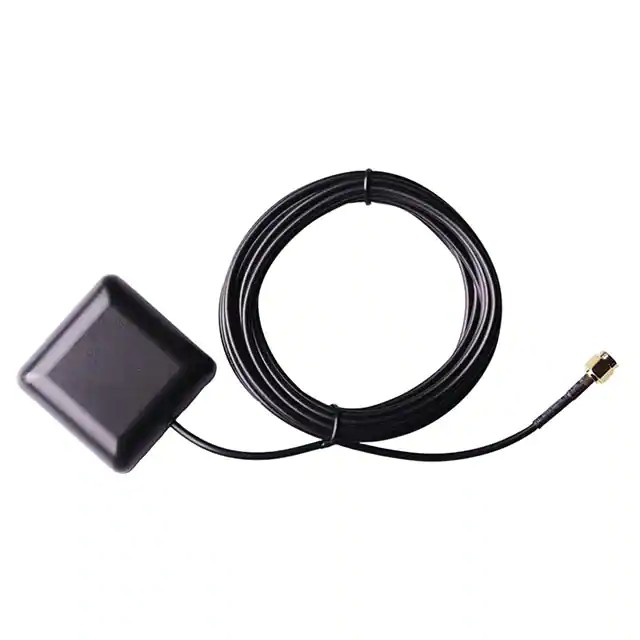

High quality 1.575ghz GPS active external antenna GNSS module RF antenna 3dBi SMA male magnetic

VSWR:≤2.0:1

DC Voltage: 3-5V

DC Current Max: 10mA

 Antenna Size: 50.5*50.5*15mm

Cable length: 1m/2m/3m/5m or other

Connector Type: SMA/MCX/MMCX/SM/BNC/FAKRA etc.

Antenna Color: Black

Antenna Mounting :Magnetic

Storage Temperature: -30 to +75 ℃ ℃

Weatherproof :100%Waterproof


Optional:SMA/SMB/CRC9/TS9/MCX/MMCX etc. please contact us



COMPANY PROFILE

Kunshan RCD Electronic Co., Ltd. was established in October 2007, committed to customizing antenna & wire harness for clients around the world.

We are mainly engaged in designing and manufacturing internal antennas (PCB / FPC / iron parts), external antennas, including 2G 2.4 / 5.8G, GSM3G, 4GLTE, 5G antennas; Besides, we also provide R F, R G coaxial cable, LVDS, IDC, FFC, electronic equipment and vehicle wiring harness.

We have obtained U L, I ATF16949 and ISO14001 international standard, which is a powerful guarantee for the quality of our products. RCD has advanced production and testing machines, as well as complete Q M S. Our products are widely  applied in electronics, digital appliances, smart home, beauty apparatus, automobiles, telecommunications, aerospace and other fields.

After 13 years’ development, RCD has accumulated several core processing and manufacturing technologies. Our own R & D team have been contributing to innovating products by cooperating with world-renowned parts suppliers and our own efforts.

R C D always adheres to the spirit of "Keeping progressing, Pursuing integrity, Embracing future", we warmly welcome customers to do business with us. Mutual benefits and win-win results help all of us walk further.
