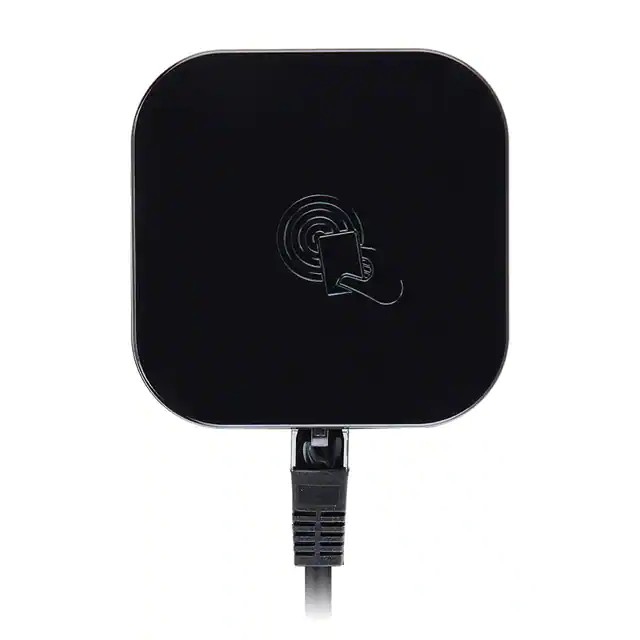

External Bracket Mount NFC Antenna with RJ45 Connector For use with NFC readers

RCD-AT0800060
External Bracket Mount NFC Antenna with RJ45 Connector For use with NFC readers

MOQ:Depending on  material and product complexity, usually 100PCS

SAMPLE:Available

OEM:We support OEM/ODM

Inquiry

Product name

External Bracket Mount NFC Antenna with RJ45 Connector For use with NFC readers

Frequency

 13.56MHz

Gain(dBi)

 2dbi

V.S.W.R

 ≤1.5

Connector

RJ45 Jack

Samples

available

Trial order

acceptable

Package

One product with one PE bag packaging


Export carton size:47cmx33cmx36cm, 47cmx33cmx26cm


Customer's packings are welcomed

Capacity

20000 pieces per day

Lead time

within 3~5 days

Input Impendence

50 Ω

Payment

TT/Western union/Paypal/Escrow

Service

OEM&ODM


This enables your device to execute point-to-point data transmission without contact. This design is matched for optimal performance with typical NFC chipsets. With its own mounting bracket, the NFR.01 can be easily installed on a wall or metal panel. To strengthen robustness in outdoor applications, the NFR.01 antenna and mounting bracket are protected by a heat-resistant, high-impact resistant UV stabilized ASA enclosure. An RJ45 Jack connector is embedded in the housing to allow for ease of connection with ethernet cables to the reader. A 1m ethernet cable is included in the kit for connection purposes. Custom cable length or type such as twisted pair is also available. Contact your regional Taoglas sales office for any product support.

Features : For use with NFC readers

Frequency: 13.56MHz

Cable: 1M Ethernet

Connector: RJ45 Jack

Dimensions: 75*75*28mm
